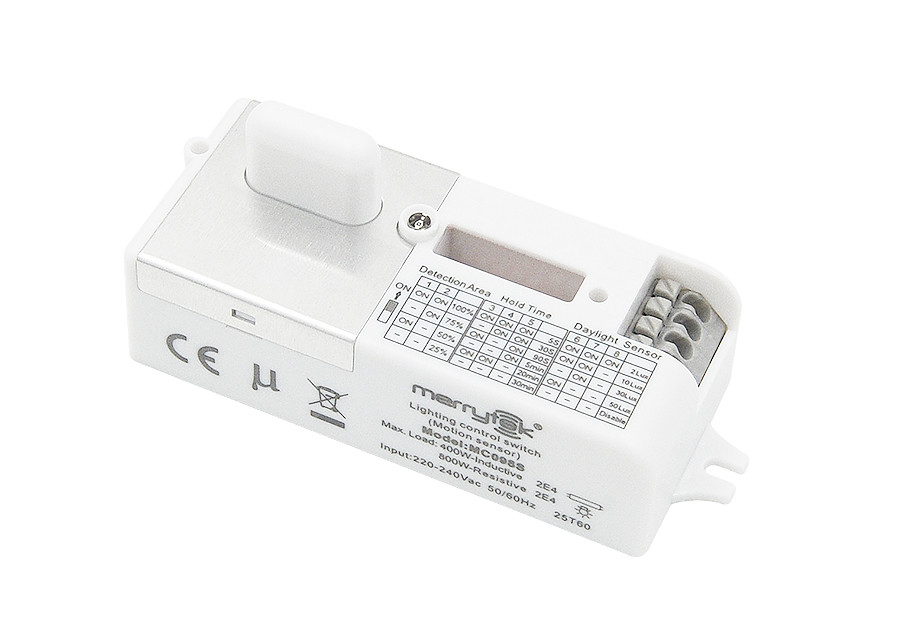

Merrytek MC098S 2 On/Off Microwave Sensor For LED Non-Corrosive Tri-Proof Lights

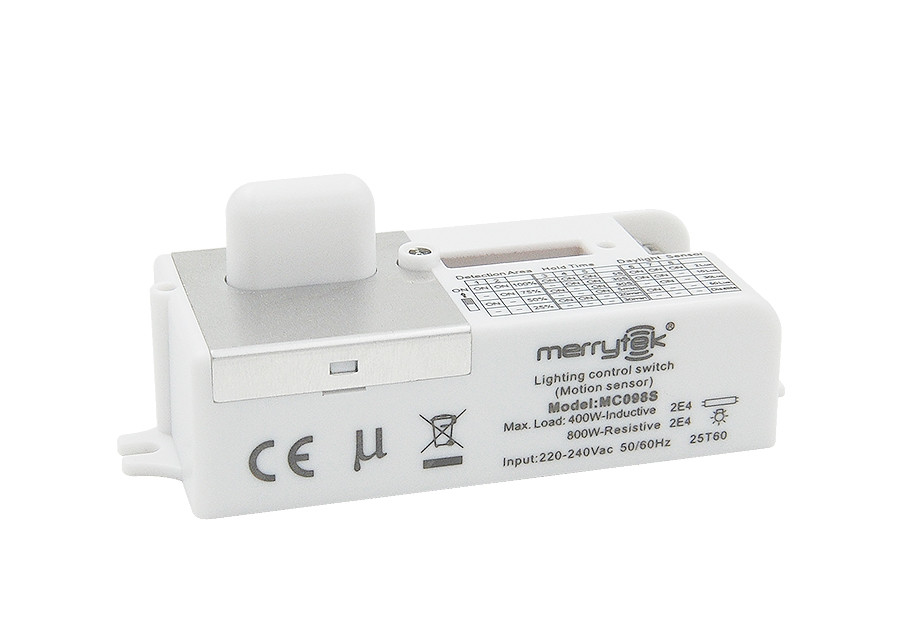

Merrytek MC098S 2 On/Off Microwave Sensor For LED Non-Corrosive Tri-Proof Lights - Image 2
Merrytek MC098S 2 On/Off Microwave Sensor For LED Non-Corrosive Tri-Proof Lights - Image 3
Merrytek MC098S 2 On/Off Microwave Sensor For LED Non-Corrosive Tri-Proof Lights - Image 4
SKU: MC098S

Merrytek MC098S 2 On/Off Microwave Sensor For LED Non-Corrosive Tri-Proof Lights

SKU: MC098S

£17.08

  • Ultra-slim design for LED Anti-Corrosive Battens
  • Patented antenna design makes reliable detecting, avoid missing triggered when sensor built-in backside of metal LED plate.
  • Adjustable detecting sensitivity via DIP switches, suitable to variety of installation sites.
  • Support 6m Max. Mounting height

 Input

  Operating Voltage Rage  198-264V AC, 50Hz/60Hz
 Rated Voltage  220-240V AC, 50Hz/60Hz
 Stand-by Power  ≤0.5W
 Surge Test  L–N: 1kV

 Output

  Working Mode  ON/OFF function
 Type of Load  Inductive or Resistive
 Load Capacity  400W(Inductive) ; 800W(Resistive)
 Max. Surge Capacity  30A (50% Ipeak, twidth =500uS, 230Vac full load, cold start);
 60A (50% Ipeak, twidth =200uS, 230Vac, full load, cold start)

 Sensor   Parameters

  Operating Frequency  5.8 GHz ±75 MHz,ISM Band.
 Transmitting power  0.5mW Max.
 Hold time  5s//30s/90s/5min/20min/30min
 Detection Sensitivity  100%/75%/50%/25%
 Daylight Sensor  2Lux/10Lux/30Lux/50Lux/Disable
 Detecting Radius  3-10m (mounting height 3-4m)
 2-8m(mounting height 6m)
 Mounting Height  6m Max.
 Detecting Angle  150° (Wall mounted), 360° (Ceiling mounted)

Operating

  Operating Temperature  -25℃…+60℃

Environment

  Storage Temperature -40℃…+80℃(Humidity: 10%-95% Non-condensing)

 Certificate   Standards

  Safety standards EN61058-1
 EMC standards EN300440; EN301489-1; EN55015; EN61547; EN61000-3-2; EN61000-3-3; EN62479
 Environmental   Requirement Compliant to RoHS
 Certificate CE, RED

 Others

  Wiring Press-in Type Terminals, wire diameter:0.75-1.5mm2
IP Rating IP20
Protection Class Class II
Installation Built-in

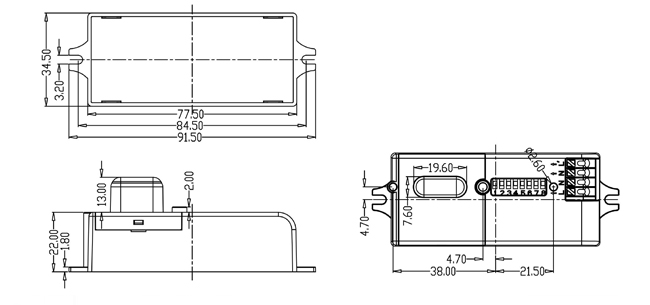

Dimension 77.5*34.5*22mm
Net Weight 58±2g
Lifetime 5 years warranty @Ta 230V full load
Note
1. “N/A”means not available.
2. Detection area is effected on volume of motion object and motion speed. The detection area is tested by a 170cm height person and walking speed is 0.3m/s.
Category:

Description

Radiation Pattern

Ceiling mounting

ON/OFF Function Microwave Sensor MC098S Suitable for Tri Proof Light 1

*Only 100% / 75% detection sensitivity is workable when installed at 6m mounting height. 25% / 50% sensitivity is not able to detect motion signal.

Wall mounting:

ON/OFF Function Microwave Sensor MC098S Suitable for Tri Proof Light 2

DIP Switch Setting

                                         Detection Area (Sensitivity)



1 2
100% ON ON
75% – ON
50% ON –
25% – –



                                          Hold Time

3 4 5
Ⅰ ON ON ON 5S
Ⅱ – ON ON 30S
Ⅲ ON – ON 90S
Ⅳ – – ON 5min
Ⅴ ON ON – 20min
Ⅵ – – – 30min



                                         Daylight Sensor

6 7 8
Ⅰ ON ON ON 2Lux
Ⅱ ON ON – 10Lux
Ⅲ – ON – 30Lux
Ⅳ ON – – 50Lux
Ⅴ – – – Disable*



*Disable” means the daylight sensor not work. it will turn on light once motion is detected regardless of ambient light.

Override Function

After initialization,Continuously switch ON/OFF 3 times to override sensor function. 2s for each on/off switch .Lights keep on all the time.

Power off and on again to recover sensor function. 2s for each On/Off switch .



Initialization

After power on, the sensor automatically turns on light at 100% brightness. After 10sec, it turns off the light. During the initialization, the sensor is not able to detect movement.



Factory Setting

Detection area: 100%, Hold Time: 5S, Daylight Sensor: Disable



Application Notice

1) The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switch.

2) The sensor which installed in the plastic and glass lampshade will reduce the sensitivity.For every 3mm increase in thickness, the sensitivity will be reduced by 20%.

3) The light sensitivity threshold is in a sunny environment, no shadow and ambient light diffuse reflection.Ambient lux level will be different in different environment, weather, climate, time-of-day and season.

4) The parameters of the sensor may need to be reconfigured in different installation environments.

5) This sensor is for indoor use only. It will affect the waterproof effect for outdoor use. Wind, rain, and moving objects around will cause false triggering.

6) The distance between any inductive sensors should be greater than 3m.

7) Do not place the sensor close to high-density objects such as metal, glass,concrete walls, etc, false triggering could happen. When the sensor is installed in a metal lamp, metal reflective surface, or a narrow enclosed environment, the microwave will be reflected repeatedly and cause false triggering. Please reduce the sensitivity or contact the manufacturer for technical support.

8) Please ensure that there are no moving signals around the sensor, such as fan,DC motor, sewer pipe, air outlet, etc., the sensor may generate false trigger.

9) You are advised to test 5 samples before mass application of sensor in a new lighting project.

10) Due to continuous improvement, the contents of this instruction could be changed without prior notice.

11) If the sensor is built under metal board ,make sure the sensor surface should to be seamless close to the metal plate without space .

ON/OFF Function Microwave Sensor MC098S Suitable for Tri Proof Light 3
