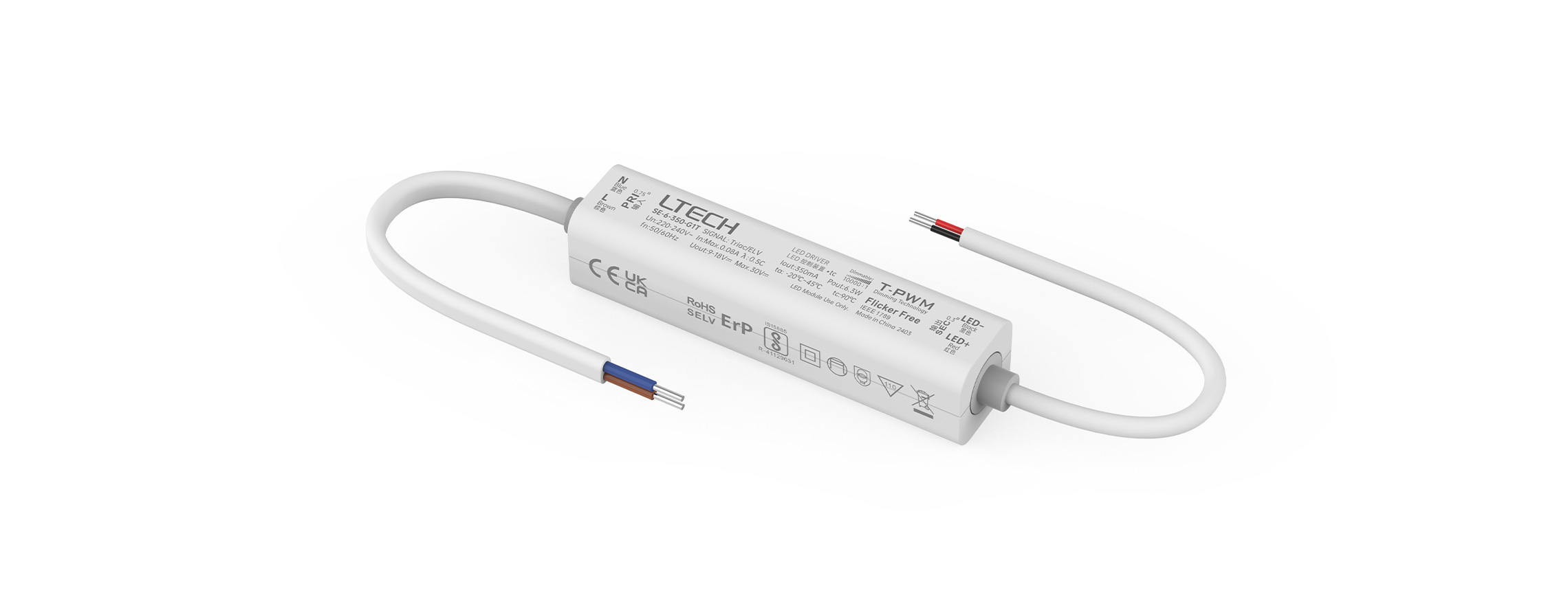

LTECH 6W 350MA Mains Dimmable Constant Current LED Driver

SKU: SE-6-350-G1T
  • Small size and light weight. The housing is made from V0 flame retardant
    PC materials from SAMSUNG/COVESTRO.
  • Support Leading edge (Triac), Trailing edge (ELV) .
  • With soft-on and fade-in dimming function, enhancing your visual comfort.
  • T-PWM™dimming technology allows continuous and flicker-free images
    under high-speed photography
  • The whole dimming process is flicker-free with high frequency exemption level.
  • Dimming from 0~100%, down to 0.1%.
  • Innovative thermal management technology intelligently protects the
    life of the LED driver
  • Overheat, over voltage , overload, short circuit protection and automatic recovery
  • Normal service life can reach 100,000 hours.
  • 5-year warranty (Rubycon capacitor).
Download Datasheet

Brand

LTECH
MPN

SE-6-350-G1T
Power

6W
Control Method

Triac Dimmable
Dimensions (LxWxH)

84mm x 20mm x 20mm
Input Voltage

200~280VDC (dimming is not possible), 220~240VAC
Output Current

350mA
Output Voltage

9-18V
Lifetime Hours

–
Ingress Protection

IP20
Safety Standards

EN61347-1, EN61347-2-13, EN62493
EMC Standards

EN55015, EN61000-3-2, EN61000-3-3, EN61547
