PI W2023032101 01 for DRK lighting PO
KL60C DiiP Spec 2019.11
brand

Merrytek

design

Standard

dimming-type

Dali Dimmable

forward-voltage

9-71V

driver-type

Constant Current

height-mm

23.8

ip-rating

IP20

length-mm

123

output-current

1000mA, 1050mA, 350mA, 500mA, 550mA, 650mA, 700mA, 750mA, 850mA, 900mA

power-watts

60

width-mm

79

SKU: KL60C-DiiP

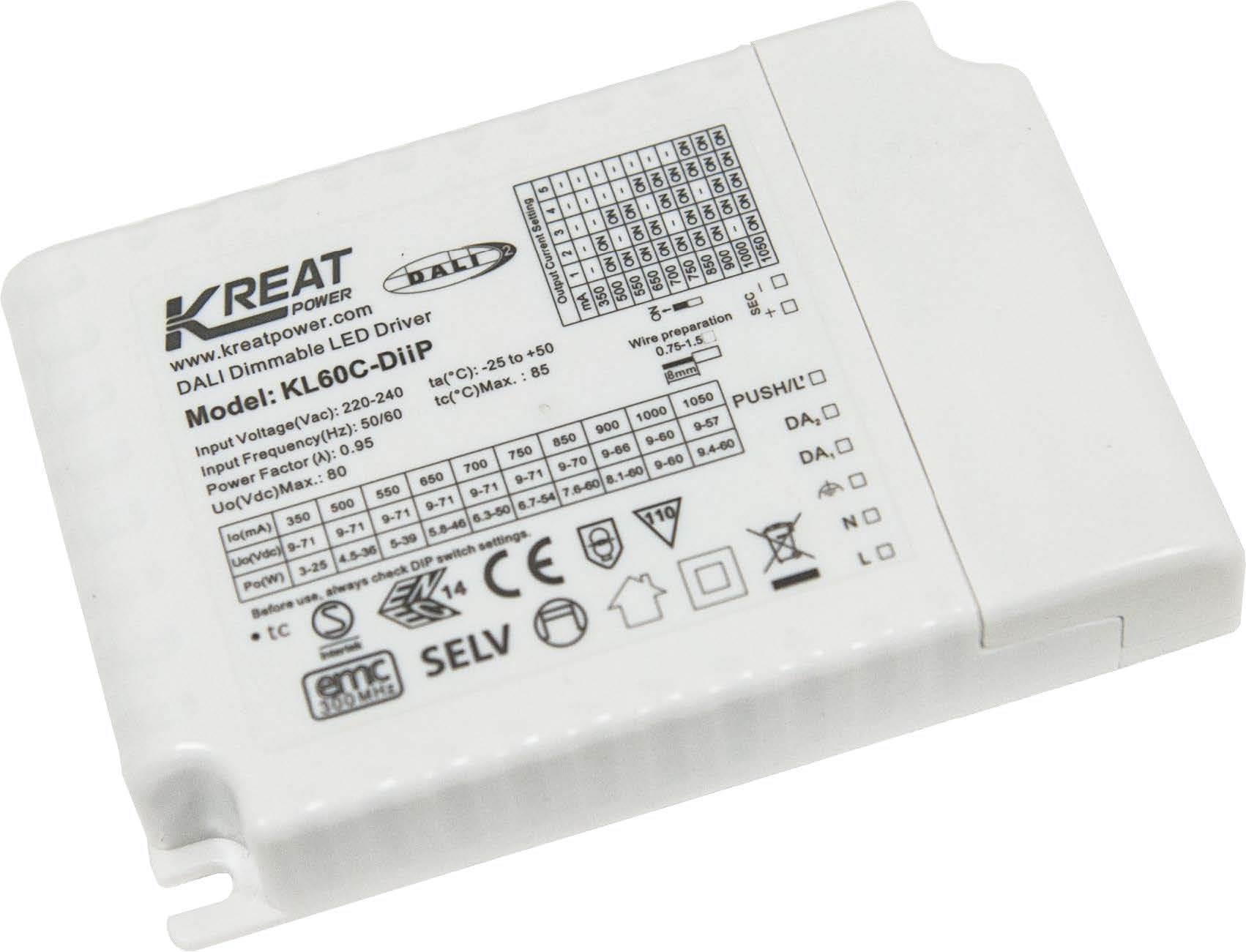

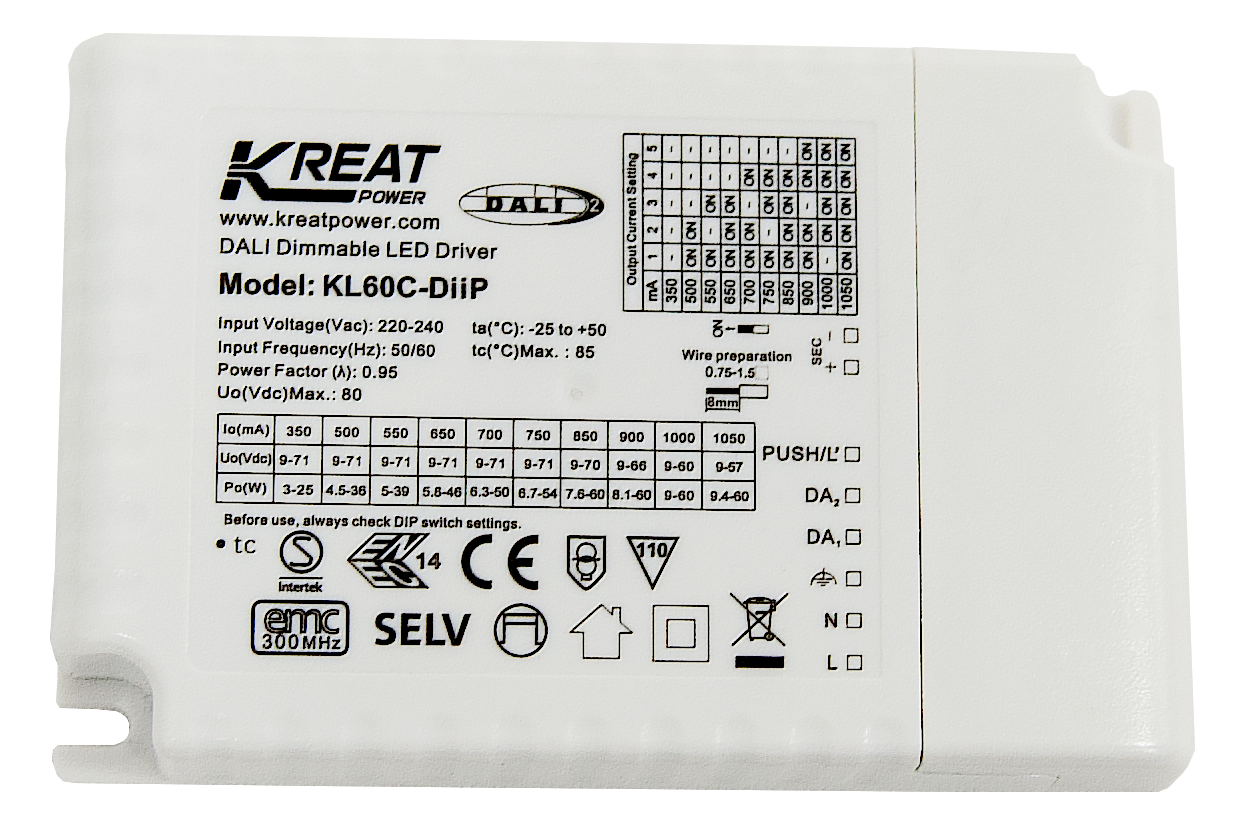

Kreat Power / Merrytek 60W 350-1050MA Constant Current Dali Dimmable LED Driver

SKU: KL60C-DiiP
20 in stock

  • With DALI dimming function; primary Push dimming function, and
    state memory
  • No flicker in the full dimming range
  • Reduce output current after over temperature
  • With output short-circuit / over-voltage protection, over-temperature protection of the whole machine,Reduce output current after over temperature
  • Standby power consumption ≤ 0.5W
  • 5 years warranty.
Categories: , ,

Description

Output Specifications
Rated Current1050mA1000mA900mA850mA750mA700mA650mA550mA500mA350mA
DC Voltage9-57V9-60V9-66V9-70V9-71V9-71V9-71V9-71V9-71V9-71V
Rated Power9.4-60W9-60W8.1-60W7.6-60W6.7-54W6.3-50W5.8-46W5-39W4.5-36W3-25W
