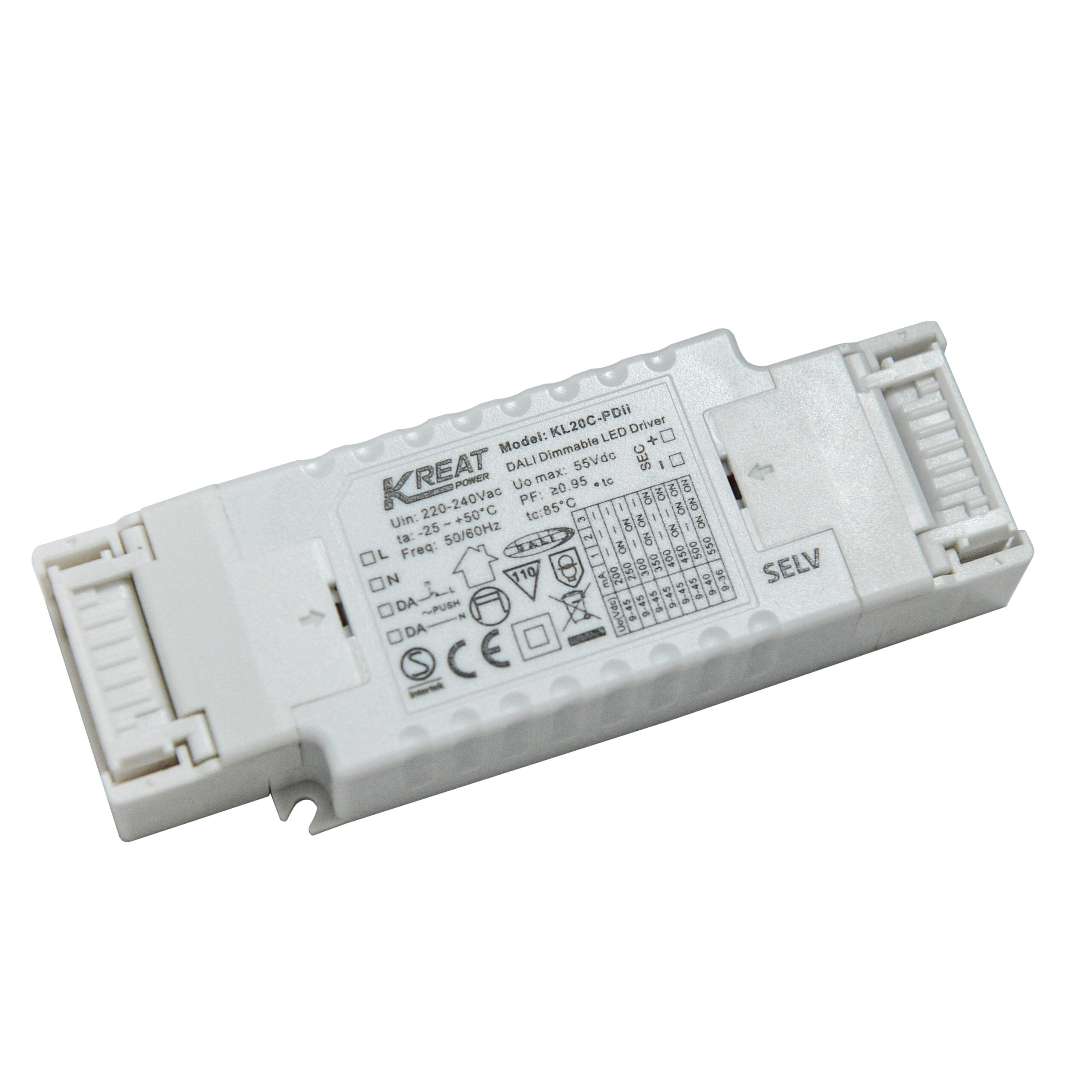

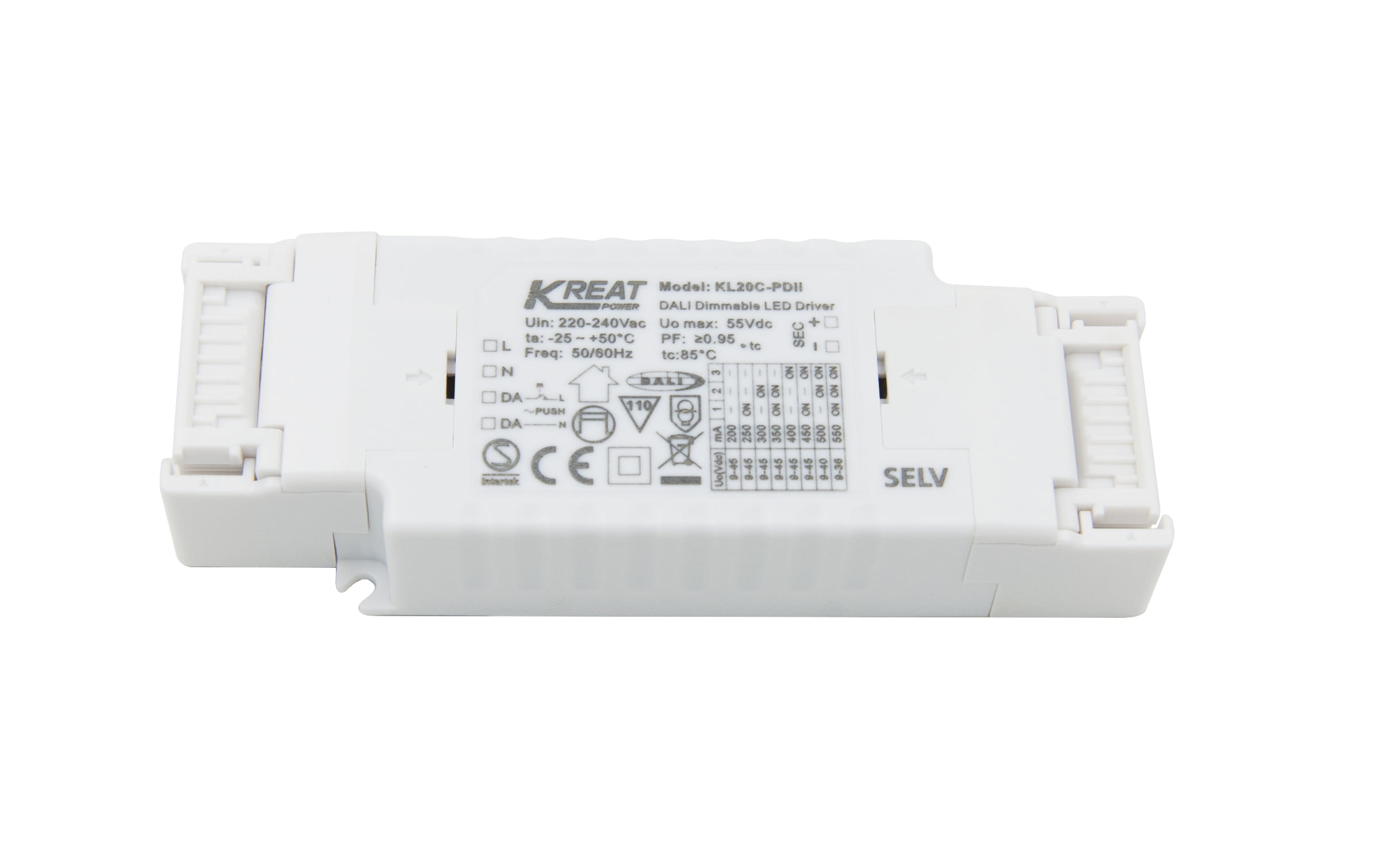

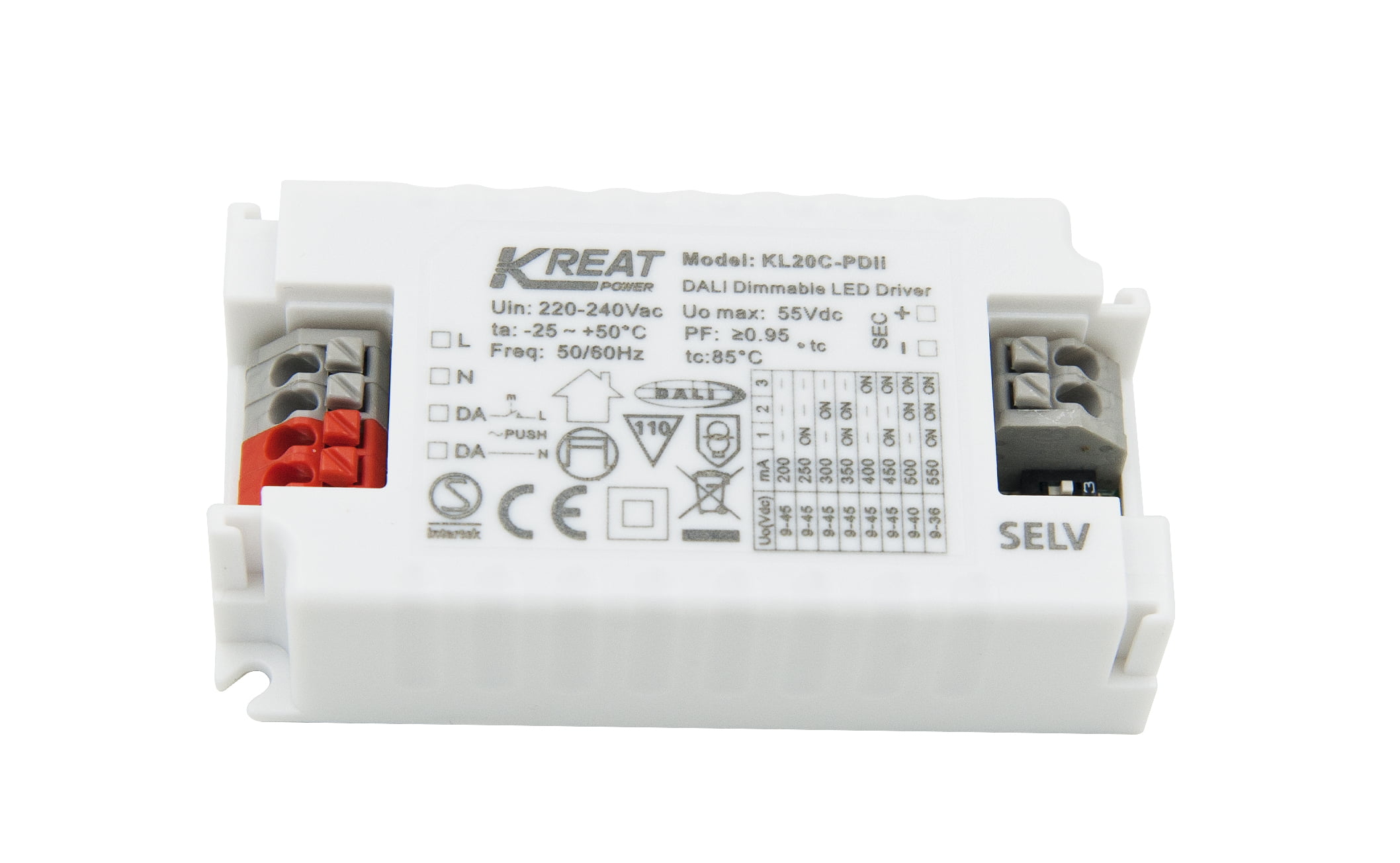

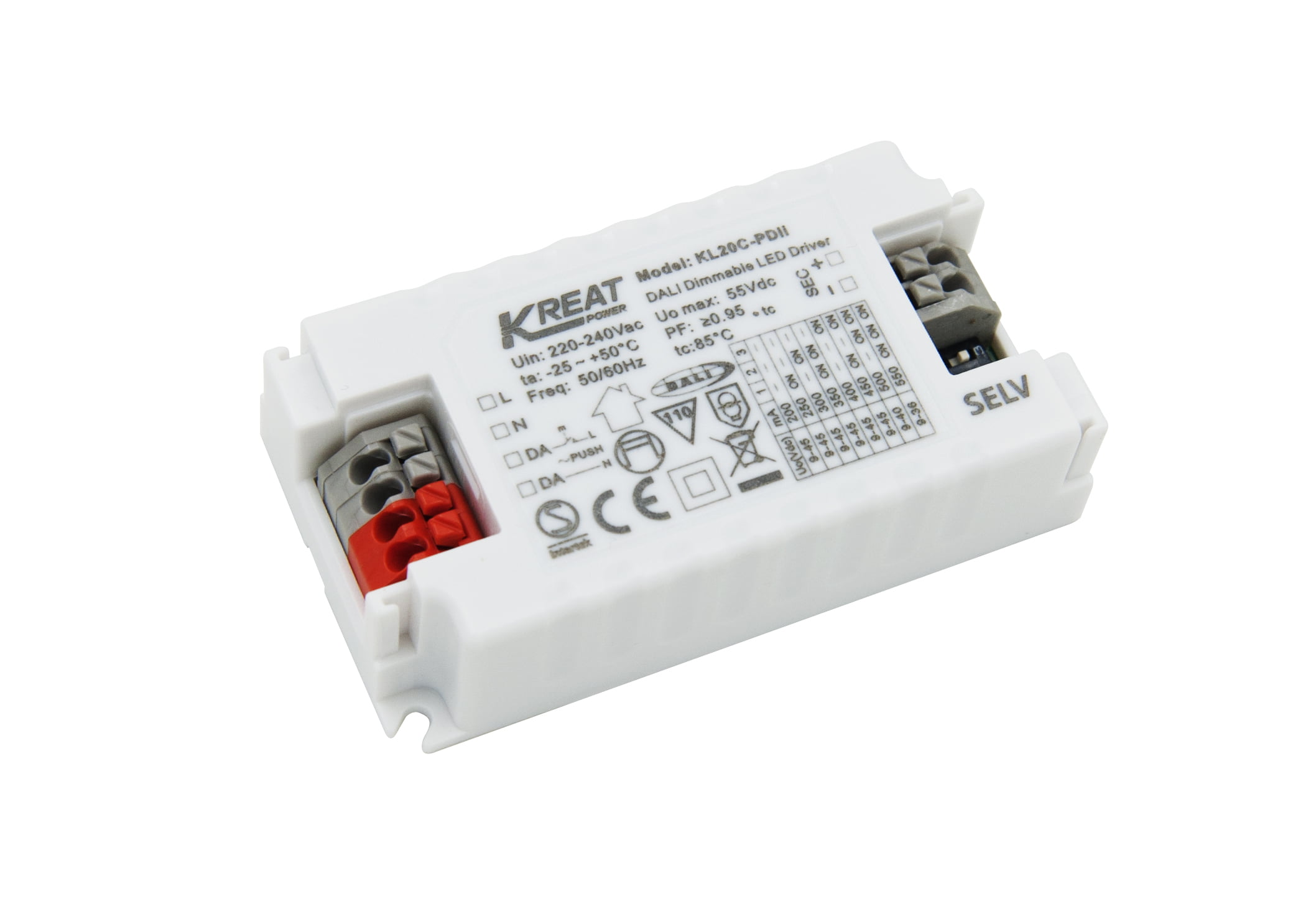

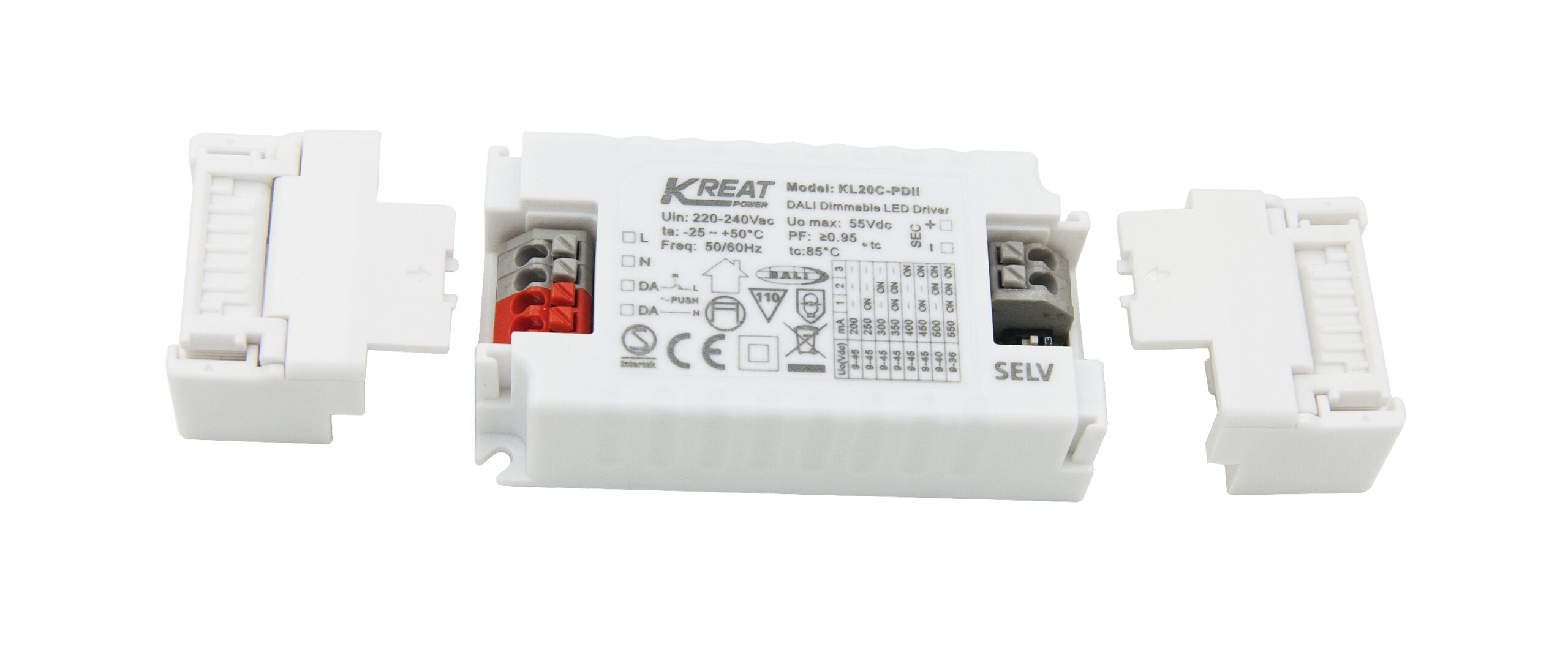

Kreat Power / Merrytek 20W 200-550MA Mini Constant Current Dali Dimmable LED Driver

SKU: KL20C-Pdii
  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Built-in DALI interface DT6
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function
  • 5 year warranty
Download Datasheet
Output Specifications
Rated Current 550mA 500mA 450mA 400mA 350mA 300mA 250mA 200mA
DC Voltage 3-36V 3-40V 3-45V 3-45V 3-45V 3-45V 3-45V 3-45V
Rated Power 20W 20W 20W 20W 20W 20W 20W 20W
