SKU: KL12C-Pdii

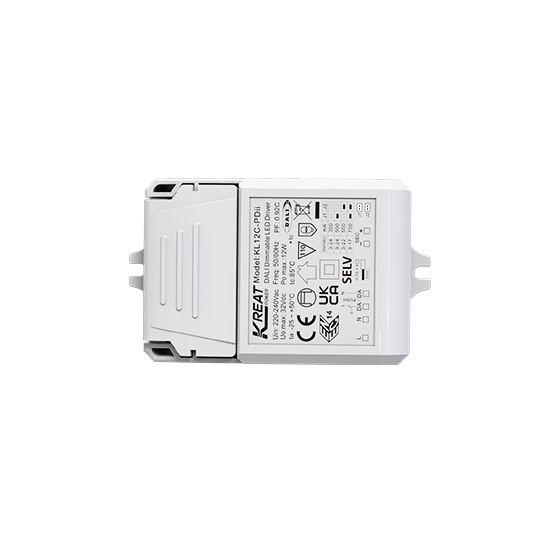

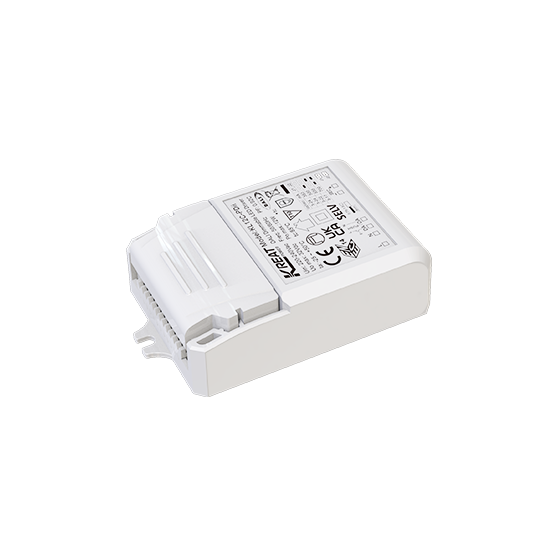

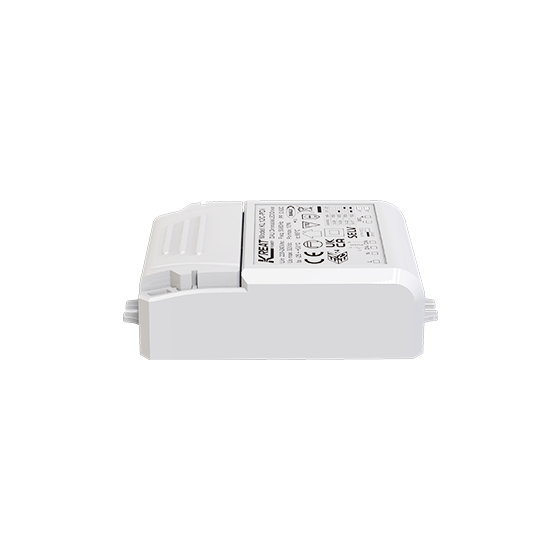

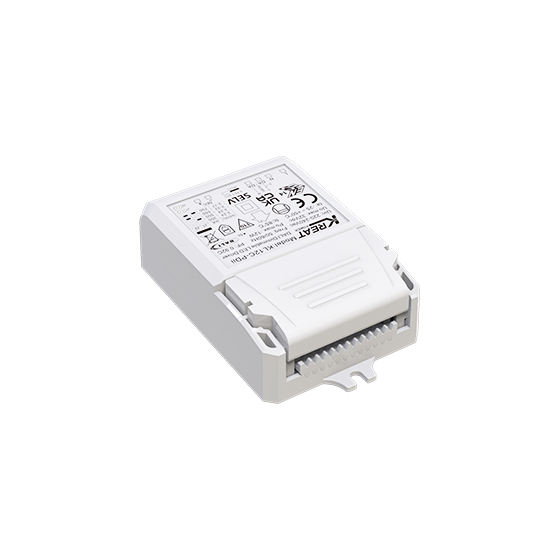

Kreat Power 12W 350-700MA Micro Constant Current Dali Dimmable LED Driver

KL12C-PDiiV

Kreat Power / Merrytek KL12C-PDii is a Dali Dimmable LED Driver with adjustable output current via dip switches. Can be adjusted from 350mA-700mA, perfect for Dali conversions / upgrades of LED Downlights, LED Panels & other lighting products.



Features
  • Flicker-free for whole dimming range
  • Stand-by power below 0.5W
  • Primary dimming with push button
  • Built-in DALI interface DT6
  • Protection: short circuit / over temperature/ over voltage
  • Derating current for over high ambient temperature
  • Push dim with memory function

Description

KL12C-PDii

by Kreat Power

KL12C-PDii by Kreat Power a Merrytek brand is a 12W Dali 2 dimmable constant current LED driver. Using the onboard dip switches the output current can be adjusted from 350mA to 700mA making it a perfect solution for upgrading most LED Downlights, Panels & other products to Dali dimmable. With its compact dimensions from 88 x 52 x 25mm and plastic terminal covers makes it easy to mount within or outside lighting fixtures. To ensure trouble-free operation, protection is provided against output short circuit and over Load. Certified by the Dali Alliance this driver is a reliable and great option for all commercial Dali Dimming Projects.



Product Characteristics

Flicker-free for whole dimming range
Stand-by power below 0.5W
Primary dimming with push button
Built-in DALI interface DT6
Protection: short circuit / over temperature/ over voltage
Derating current for over high ambient temperature
Push dim with memory function



Output Specifications
Rated Current700mA550mA500mA350mA
DC Voltage3-17V3-22V3-24V3-24V
Rated Power12w12w12w12w
