brand

Ecopac

dimming-type

0-10V

design

Standard

driver-type

Constant Voltage

height-mm

27

ip-rating

IP20

length-mm

140

output-current

0-0.83A

output-voltage

24V

power-watts

20

width-mm

45

SKU: ELED-20-24V

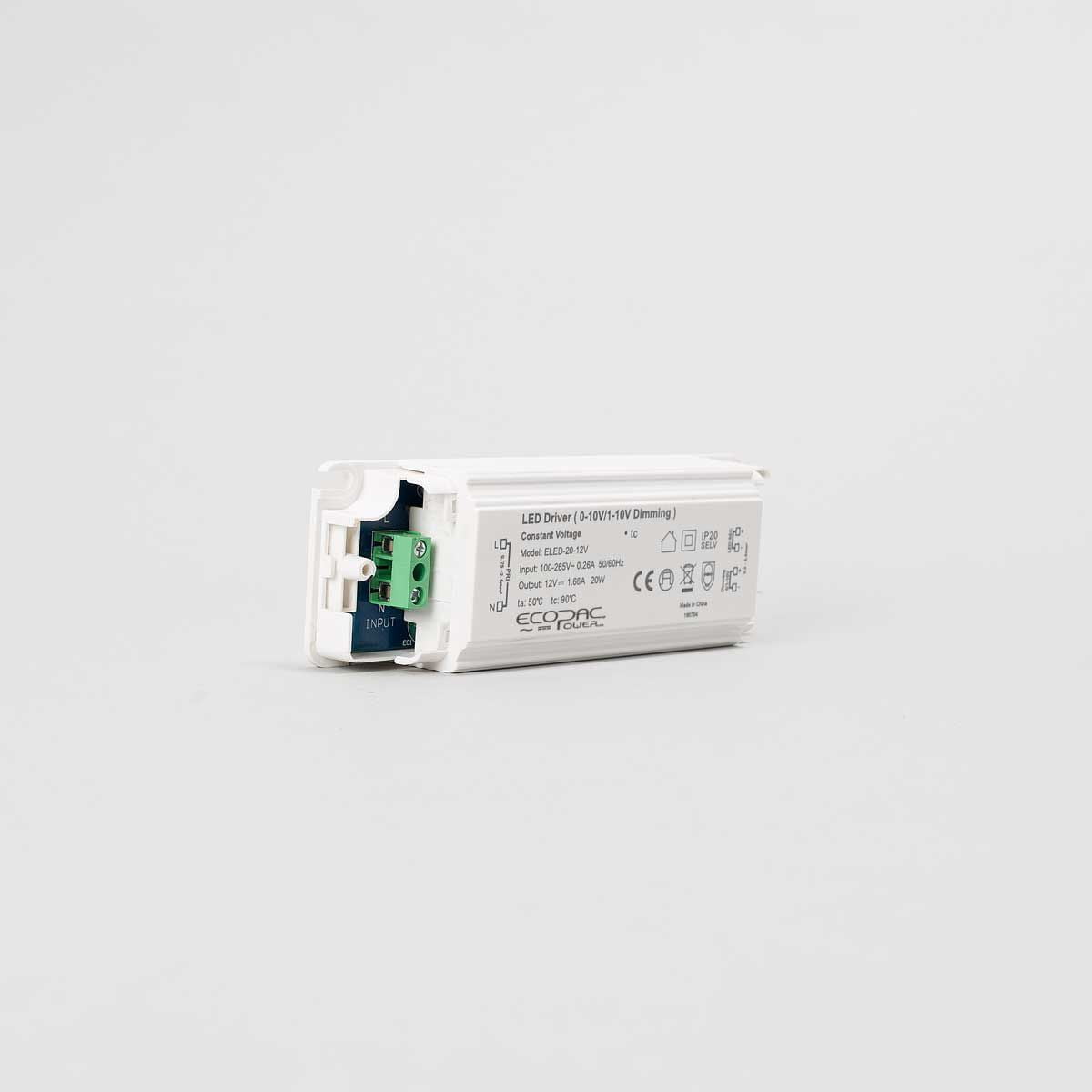

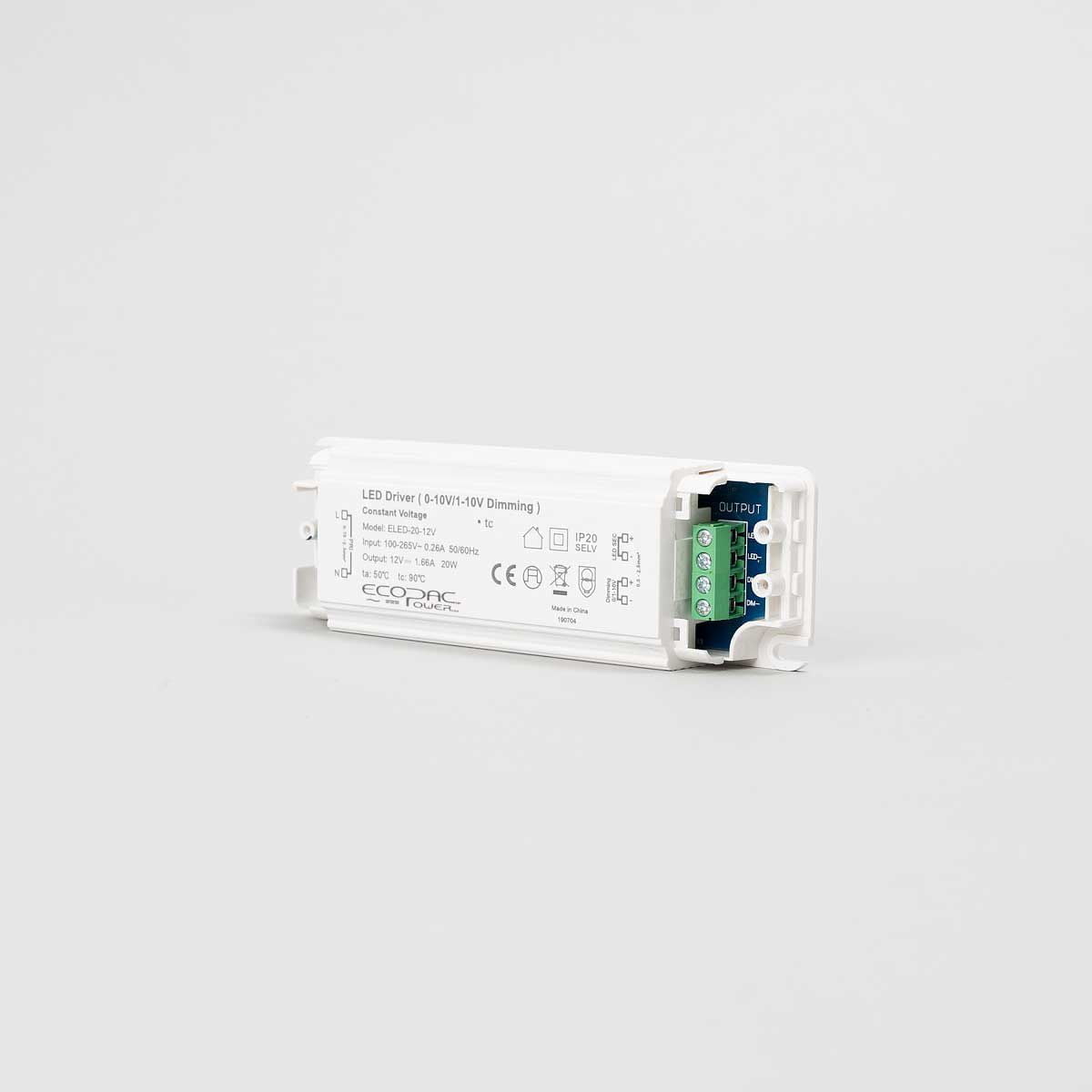

Ecopac 20W 24V Constant Voltage 0-10V Dimmable LED Driver

  • Constant voltage
  • 3 in 1 dimming function (0/1-10Vdc or 10v PWM signal or resistance)
  • AC input: 100-265VAC
  • Built-in active PFC function
  • High efficiency up to 82%
  • Protections: Short circuit/Over current/Over loading
  • Cooling by free air convection
  • Suitable for LED lighting and moving signs
Categories: , ,

Description

BrandEcopac
Dimming Type0-10V
Wattage20
Input Voltage (V)100~265VAC
Output Current (A)0-0.83
Output Voltage (V)24
Output Voltage OptionsSingle
DC output adjustmentN/A
Working Temperature-40 ~ 60°C
Safety StandardsEN61347-1, EN61347-2-13
EMC StandardsCompliance to EN55015, EN61000-3-2 (>60%load), Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A
Dimensions (LxWxH) mm140 x 45 x 27mm
