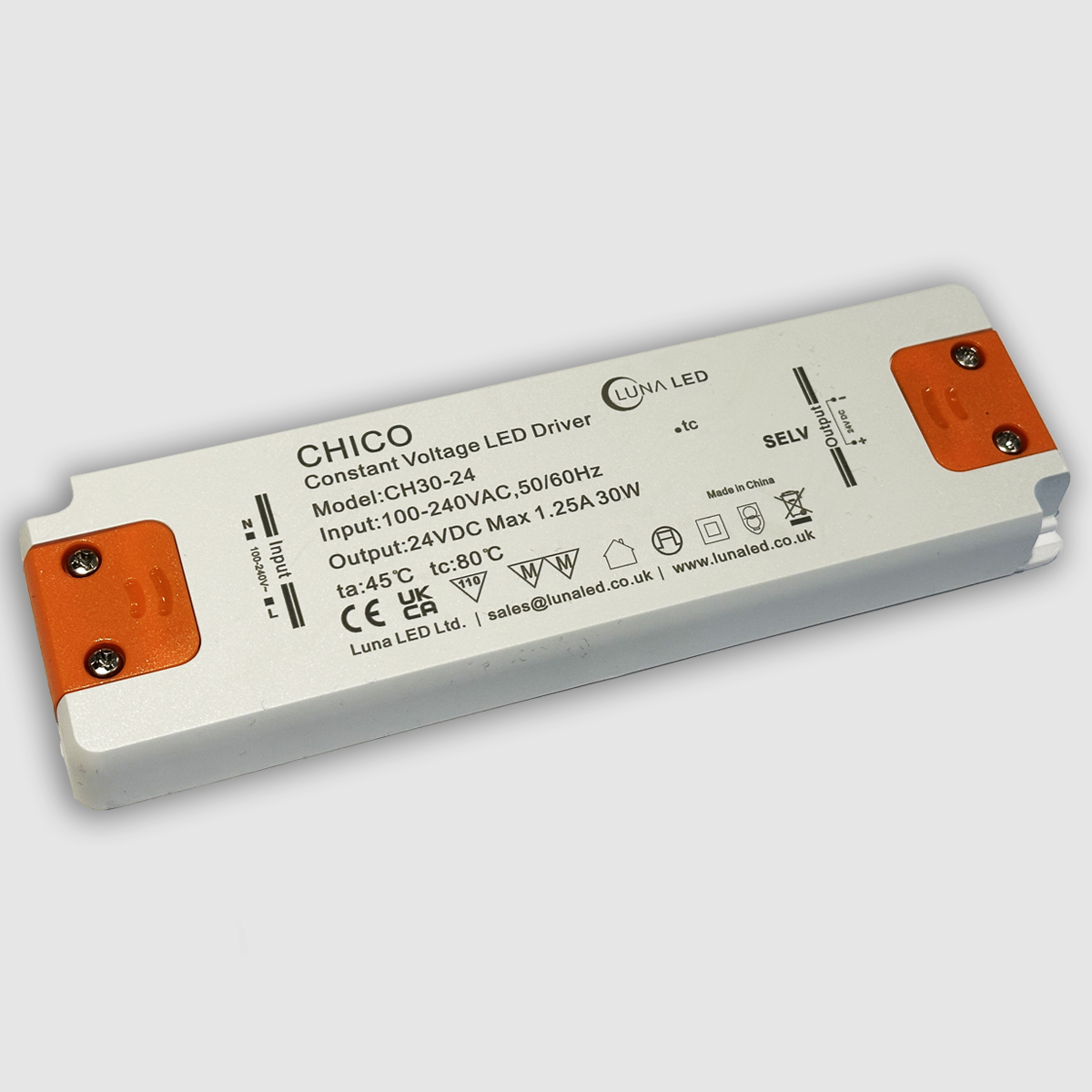

Chico 30W 24V Constant Voltage Non-Dimmable LED Driver

SKU: CH30-24
CH Series

The CH30-24 Non-Dimmable 24V 30w LED driver is ideal for LED strip lighting, with its low profile flat design it’s extremely reliable and a great option for all commercial & domestic non-dimming projects.

Features
  • Protection:Short Circuit/Over Loading /Over Current/ Over Temperature
  • Power Factor: ＞0.9
  • Efficiency: ≥86%
  • Flicker-free ERP
  • Cooling by free air convection
Download Datasheet

CH Series

by Luna LED
The Chico CH30-24 is a versatile non-dimmable 30W LED driver with a 24V constant Voltage output. To ensure trouble-free operation, protection is provided against output short circuit and over Load. This driver is a reliable and great option for all commercial & domestic Projects.
Brand

Luna LED
MPN

CH30-24
Power

30W
Control Method

Non-Dimmable
Dimensions (LxWxH)

162mm x 50mm x 16.5mm
Input Voltage

100~240VAC
Output Current

1.25A
Output Voltage

24V
Lifetime Hours

30,000
Ingress Protection

IP20
Safety Standards

EN61347-1, EN61347-2-13, EN62493
EMC Standards

EN55015, EN61000-3-2, EN61000-3-3, EN61547
